DOOR EI2 120
-
Construction: 63 mm double-sheet galvanized steel door leaf with fire-resistant core
-
Finish: Oven-hardened epoxy-polyester powder coating in RAL 9010 white, providing both strength and a clean finish
-
Frame: Robust 4-sided steel frame with adjustable clamps and pre-drilled holes for expansion screws
-
Hardware: Spring and bearing hinges, CE-marked lock with latch and turn, black safety handle with steel reinforcement
-
Sealing: Thermo-expanding gasket between frame and leaf for superior fire and smoke containment
-
Certification: Fully compliant with EU standards, supplied with a conformity label and a full documentation package
Our Other Products
-
Construction: 53 mm double-sheet galvanized steel door leaf with fire-resistant core
-
Finish: High-quality RAL 9010 white powder-coated surface, oven-baked for durability
-
Frame: Four-sided reinforced steel frame with clamps and expansion screw holes for quick installation
-
Hardware: One spring hinge, one bearing hinge, CE-marked lock with latch and turn, and a black safety handle with steel core
-
Sealing: Thermo-expanding gasket between frame and leaf to ensure a tight seal in case of fire
-
Certification: Delivered fully assembled, with CE marking, data label, installation and maintenance manual, and conformity documentation
• Our Multipurpose Metallic Door is a robust and versatile solution designed for general-use applications where fire resistance is not required. Supplied fully assembled, it offers durability, ease of installation, and a clean, professional finish suitable for commercial, industrial, and service areas.
• Standard Specifications
• Configuration: Single-leaf, reversible door
• Construction: 53 mm thick galvanized double steel sheet leaf with honeycomb fibre core
• Finish: Epoxy-polyester powder coating, oven-hardened, embossed RAL 9010 (white)
• Frame: High-resistance steel frame on four sides, with adjustable clamps and pre-drilled holes for expansion screw fixing
• Hinges: Two reduced-dimension bearing hinges (98 × 16.5 mm Ø)
• Locking: CE-marked lock with latch and turn
• Hardware: Black safety handle in durable plastic with plates and Patent key
• Installation: Removable lower frame after installation
• Documentation: Supplied with product data label and installation, use, and maintenance booklet
All metallic fire doors are supplied fully equipped, with the following certified accessories included in the price. Each component is designed for durability, functionality, and compliance with European standards.
Handles and Plates
Fire-rated handle and plate – Certified to DIN 18255 standard
Multipurpose handle and plate – Suitable for non-fire-rated applications
“Patent” key with plastic insert – Included for both fire-rated and multipurpose models
Locks
Fire-rated and multipurpose locks – CE-marked in accordance with EN 12209

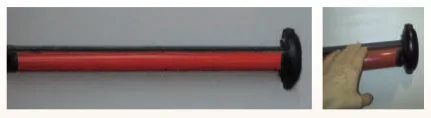

Standard lock (left-hand) and antipanic lock (right-hand) for use with antipanic crossbars
Hinges
Multipurpose hinge: 98 x 16.5 mm Ø
Fire-rated hinges: CE-marked to EN 1935, including one spring hinge (left) and one bearing hinge (right)
Bolts and Latches
Fire-rated bolts on leaf and strikes integrated in the frame
Self-blocking latch on secondary leaf (fire-rated) – ensures the leaf remains securely closed
Latch for secondary leaf (multipurpose) – with smooth locking action
Lock for secondary leaf (fire-rated) – for enhanced safety and performance
Sealing and Gaskets
Self-expanding fire-rated gasket – Designed to contain hot smoke and flames during exposure
Conformity and Identification
Fire-rated conformity mark – Metallic label as required by law, showing all product data and certification
Installation Components
Clamps (fire-rated and multipurpose): Designed to bend open for fast and secure fixing
Closing regulator (fire-rated): CE-marked to EN 1158, available for both open and closed positions
Floor socket (fire-rated and multipurpose): Strike for lower rod in floor, compatible with EI2 120 frame
